Hydraulic Cylinders & Systems

Bore diameter – 110 mm
Rod Dia meter – 65 mm
Stroke – 700 mm
Working Pressure– 210 Bars
Test Pressure – 315 Bars
Normal Load
Extended - 19.95 tons
Retracted - 12.98 Tons
Test Load
Extended - 29.91 Tons
Retracted - 19.47 Tons

Bore diameter – 110 mm
Rod Dia meter – 60 mm
Stroke – 239 mm
Working Pressure– 210 Bars
Test Pressure – 315 Bars
Normal Load
Extended - 8.08 tons
Retracted - 5.44 Tons
Test Load
Extended - 12.12 Tons
Retracted - 8.16 Tons

Bore diameter - 200 mm
Rod Dia meter - 100 mm
Stroke - 600 mm
Working Pressure- 250 Bars
Test Pressure - 350 Bars

Bore diameter - 120 mm
Rod Dia meter - 65 mm
Stroke - 485 mm
Close Length - 935
Open Length - 1420
Working Pressure- 140 Bars
Test Pressure - 210 Bars
Normal Load
Extended - 15.84 Tons
Retracted - 11.19 Tons
Test Load
Extended - 23.76 Tons
Retracted - 16.78 Tons

Bore diameter - 100 mm
Rod Dia meter - 65 mm
Stroke - 115 mm
Working Pressure- 320 Bars
Test Pressure - 420 Bars
Normal Load
Extended - 25.13 Tons
Retracted - 14.51 Tons
Test Load
Extended - 32.98 Tons
Retracted - 19.05 Tons

Bore diameter - 63 mm
Rod Dia meter - 76 mm
Stroke - 625 mm

Bore diameter - 120 mm
Rod Dia meter - 70 mm
Stroke - 840 mm

Bore diameter - 170 mm
Rod Dia meter - 110 mm
Stroke - 1619 mm

Bore diameter - 185 mm
Rod Dia meter - 120 mm
Stroke - 1725 mm

Bore diameter - 250 mm
Rod Dia meter - 170 mm
Stroke - 2340 mm
Closing Length - 3622

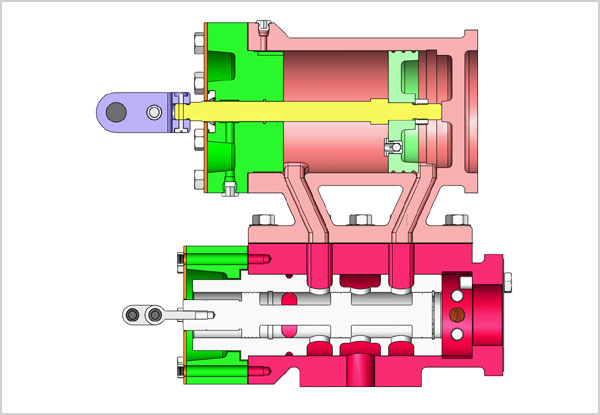

Flow rate : 300Lpm
Working pressure: 315 bars
Nos of Ports: 2 -pressure and 2 return
